Process drying · Air circulation & blow-off
Ring Blower for Drying Tunnel
Drying Tunnel duty, sized right: hot-air circulation and blow-off drying of product. Real Yash models, oil-free where it matters, ISO 9001:2015 and built in Faridabad since 1998.
- Duty
- hot-air circulation and blow-off drying of product
- Airflow
- 300–2,000 m³/hr
- Pressure
- +150 to +450 mbar
DTYMoving air through a drying tunnel
A drying tunnel dries product — bottles, containers, printed sheet, food, components — by moving a lot of warm air over it as it passes through, plus a blow-off zone that strips surface water before drying. The bulk air-circulation duty is high volume at modest pressure, which is centrifugal-blower territory: a CX blower moves the tunnel's air on a broad, stable curve. The blow-off zone, where air knives strip water at the entry, is a moderate-pressure ring-blower duty. Splitting the two — a centrifugal for circulation, a ring blower for the knives — dries faster and uses less energy than trying to force one machine to do both, and both run oil-free so nothing contaminates the product.
Yash CX centrifugal blowers move the circulation air and ring blowers feed the blow-off knives, so a drying tunnel gets the right machine on each duty from one supplier. Oil-free, ISO 9001:2015, made in Faridabad, sized on air volume and tunnel length, quoted in 24 hours.
SZESizing note
Size circulation on the air changes and temperature the tunnel needs and blow-off on slot area and velocity; recirculating heated air with make-up rather than dumping it cuts the drying energy sharply.
Indicative only — final selection depends on your exact duty point, altitude and air temperature. Send the numbers and an engineer confirms the model.
MDLRecommended models
Real Yash models whose published specifications sit inside this machine's duty window. Every figure is from our catalogue — click any model number for its full datasheet.

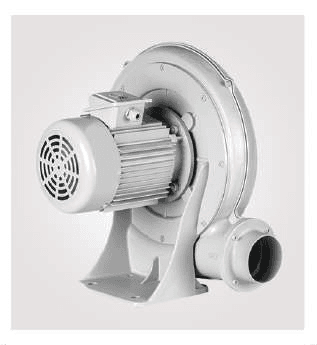

CX-Series Centrifugal Blower
Full range →High-volume circulation air for the tunnel body — moves the drying air on a broad, stable curve at modest pressure.
| Model | Power | Flow (m³/hr) | Flow (CFM) | Vacuum (Pa) | Pressure (Pa) | Noise (dB) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| YBCB-CX-100A | 2.0 HP | 1200-1450 | 706-853 | 2000 | 3000 | 74/90 | 28 |
| YBCB-CX-125A | 3.0 HP | 1950-2350 | 1130-1383 | 2400 | 3700 | 76/95 | 38 |
| YBCB-CX-150A | 5.0 HP | 2800-3300 | 1648-1942 | 3200 | 4400 | 80/100 | 54 |
Single Stage Turbine Blower
Full range →Moderate-pressure ring-blower air for the entry blow-off knives that strip surface water before drying.
| Model | Power | Flow (m³/hr) | Flow (CFM) | Vacuum (mbar) | Pressure (mbar) | Noise (dB) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| YEBL-1-700 | 7.5 HP | 700 | 412 | -200 | 180 | 81 | 66 |
Double Stage Turbine Blower
Full range →Higher-head blow-off for longer knives or faster lines where a single stage cannot hold the curtain.
| Model | Power | Flow (m³/hr) | Flow (CFM) | Vacuum (mbar) | Pressure (mbar) | Noise (dB) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| YEBL-DS-520 | 15.0 HP | 520 | 317 | -430 | 660 | 74 | 123 |
FAQRing Blower for Drying Tunnel — FAQs
- What blower dries product in a drying tunnel?
- Two duties, two machines: a CX centrifugal blower moves the bulk warm circulation air on a broad, stable curve, and a ring blower feeds the entry blow-off air knives that strip surface water first. Splitting them dries faster and uses less energy than one oversized machine trying to do both.
- How do I cut drying-tunnel energy cost?
- Recirculate the heated air with controlled make-up instead of exhausting it, strip surface water with blower-fed air knives before the heated zone so less water has to evaporate, and size the circulation blower to the air changes actually needed. Blower-fed knives also cost a fraction of compressed-air blow-off.
REFExplore further
RFQ / Request for Quotation
Sizing a ring blower for your Drying Tunnel?
Send your duty point (300–2,000 m³/hr at +150 to +450 mbar), the machine make and your site voltage — an engineer sizes the exact model and quotes within 24 hours.
